(Phased-Out)
• Wide range of CPUs from J1900 to Intel 6th generation Celeron,
Core i3/i5
• Intel AMT & Intel TPM Technology (i5 only)

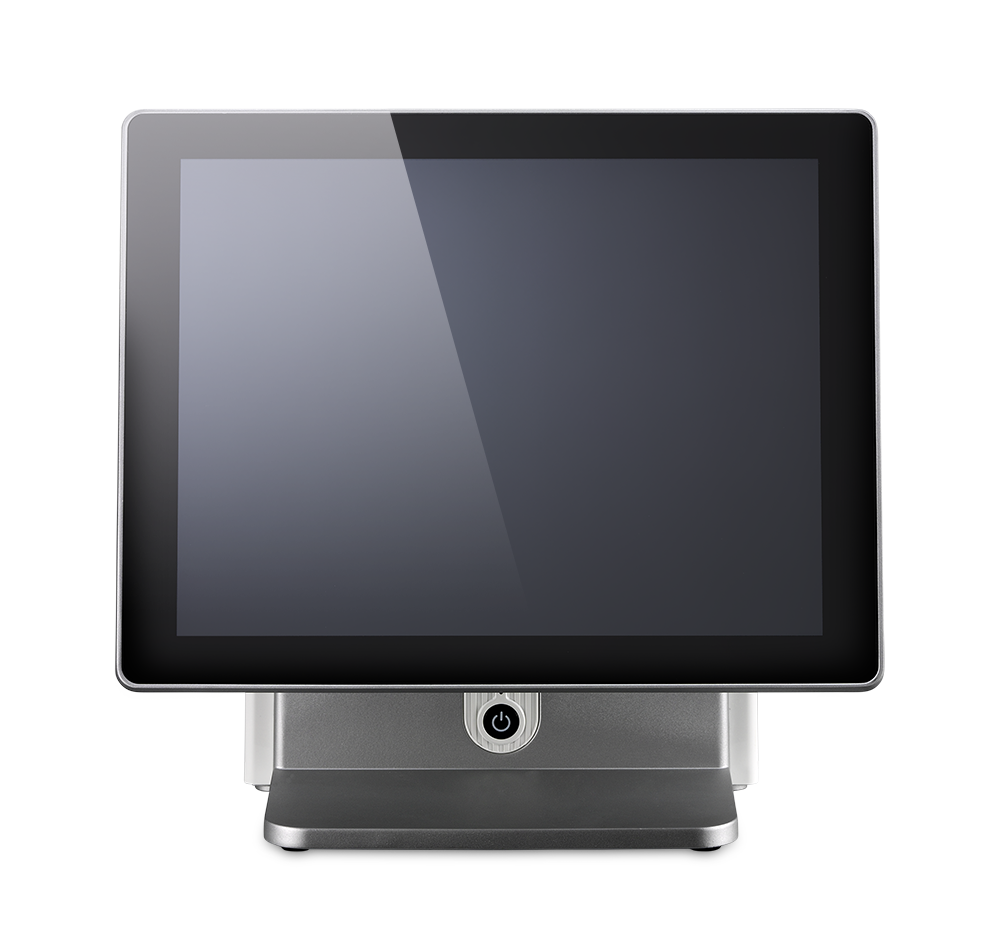

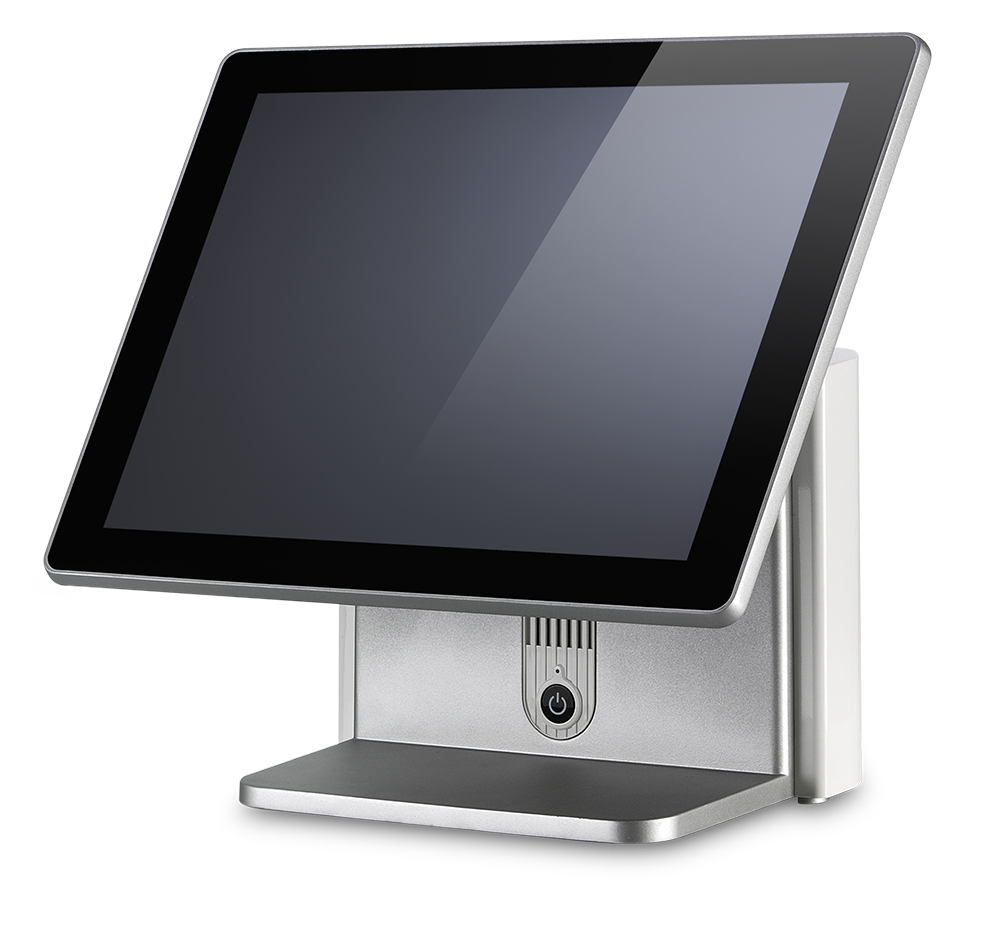

• True flat 15” 4:3 LCD (LED backlight), 400 nits with IP66
• RAID 0/1 function with dual SSD/HDD support (PE21 Option)
• Patented swivel arm with flexible height/tilt adjustment for 2nd
display and dual (Left/Right) base mounting points
• Supports 2x12v, 1x24v Powered USB (PE21 Option/ PE20 by
request)
• Ultra slim front panel with durable die-cast Aluminum chassis;
built to last
• Redefines serviceability from design with easy access & quick
swap modular design for Display, MB Box & SSD/HDD
• Peripheral compatibility across the whole VariPOS 2xx series:
LCM, 10.1”2nd display with patented double hinge, VESA
Bracket, MSR, iButton, Fingerprint, RFID, Scanner
| Processor | Intel® Skylake Celeron® G3900TE Processor |
| Intel® Skylake Core™ i3-6100TE Processor | |
| Intel® Skylake Core™ i5-6500TE Processor | |
| Chipset | Intel® H110 / Intel® Q170 ( Option ) |
| System Memory | 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB. |
| TPM | Intel F/W |
| Intel AMT | N/A / YES ( i5 w/ Q170 chipset ) |
| LCD Size | 15" 4:3 TFT LCD (LED backlight) |
| Brightness | 400nits |
| Resolution | 1024 x 768 (4:3) |
| Touch | True Flat Projected Capacitive Technology |
| HDD/SSD | 1 x SATA III-2.5'' / 2 x SATA III-2.5'' ( Option ) |
| RAID Function | N/A / YES. Support RAID 0/1 ( Q170 chipset ) |
| DC Input | 1 x Mini Din 4P (DC +19V only) |
| Cash Drawer | 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers |
| LAN port | 1 x Intel Gigabit Ethernet by RJ-45 |
| USB port | 4 x USB 3.0 2 x USB 2.0 |
| Powered USB Port (Option) |
2 x 12v Powered USB 1 x 24v Powered USB |
| COM port | 3 x RS-232(COM1/2:DB-9, COM3:RJ-48) w/DC 0V/+5V/+12V, Selectable by BIOS (default setting is DC 0V) |
| VGA port | 1 x DB-15 w/DC+12V. Power enables by BIOS setting (default is Disable) |
| Bus Expansion | 1 x Mini-PCI-E Slot |
| Power Switch | 1 x power on/off button |
| Speaker | HD Audio, 2W Speaker x 2 |
| OS Support | Win10 2016, Win8.1, Win7/POS Ready 7 |
| Power Adapter | External adapter, DC Model : |
| Voltage:+19VDC, Std. 90watt. (P owered USB will use 180watt adaptor) |
|
| Certifications | CE, FCC, LVD, RoHS |
| Protection | IP 66 on front panel |
| Material | Main Unit: Die-Cast Aluminum |
| Color | Main Unit: Space Gray / Black, Space Gray / White |
| Dimension ( W x H x D mm ) | 365.89 x 354.48 x 196.55 |
| Operating | 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing |
| Storage | -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing |
| 2nd Display | 10.1 " Resolution 1280 x 800 (16:10 wide screen), USB Type |
| VESA Bracket | Supports Display M series |
| Customer Display (LCM) | 2x20 LCM, USB Type |
| MSR | ISO 3-Tracks Slim MSR, USB Type |
| iButton | Dallas Key Reader, USB Type |
| Fingerprint | DigitalPersona U.are.U 4500 Module, USB Type |
| Scanner | 2D scanner, USB Type |
| Carton | L 460 x W 300 x H 510 mm |
