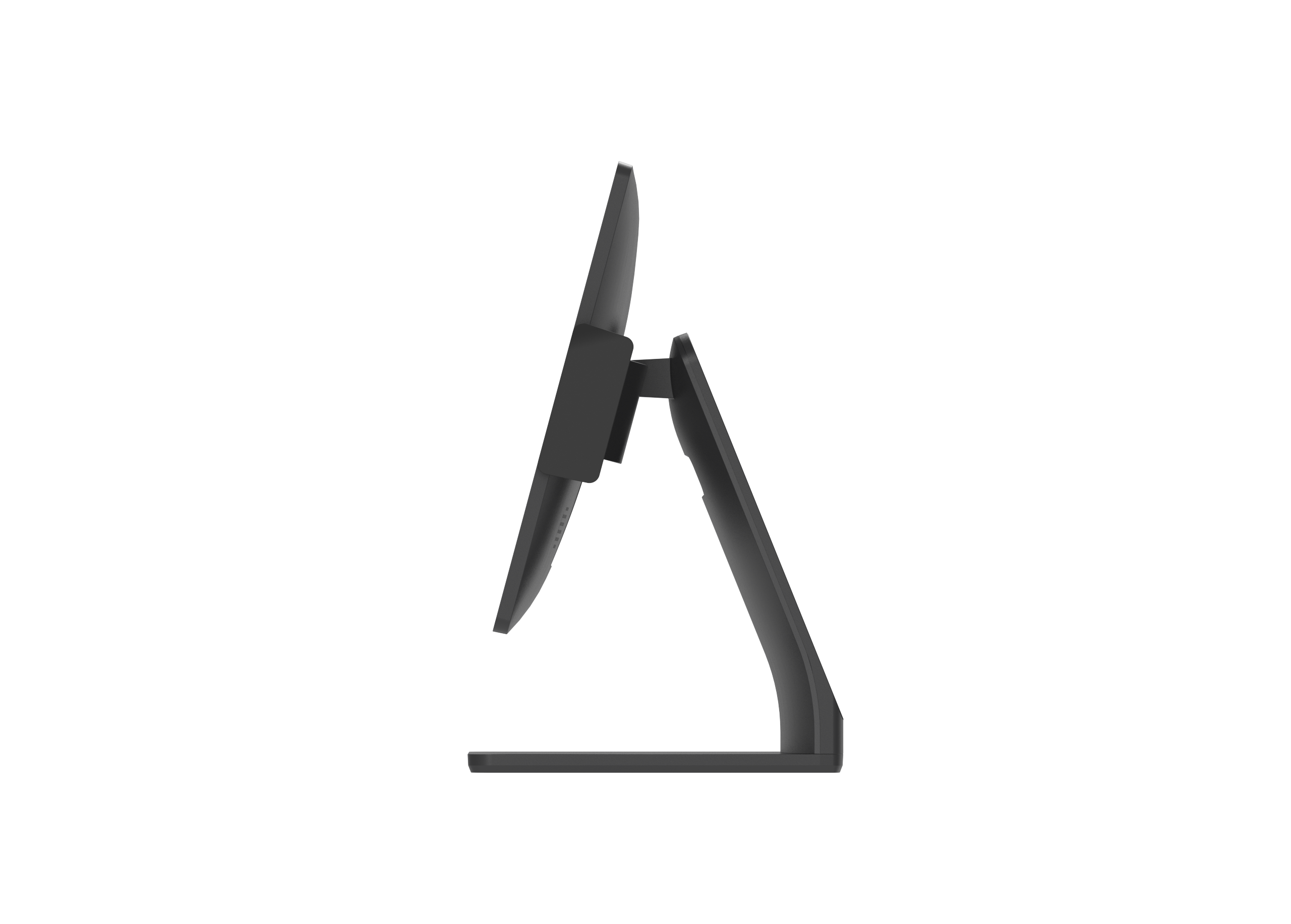

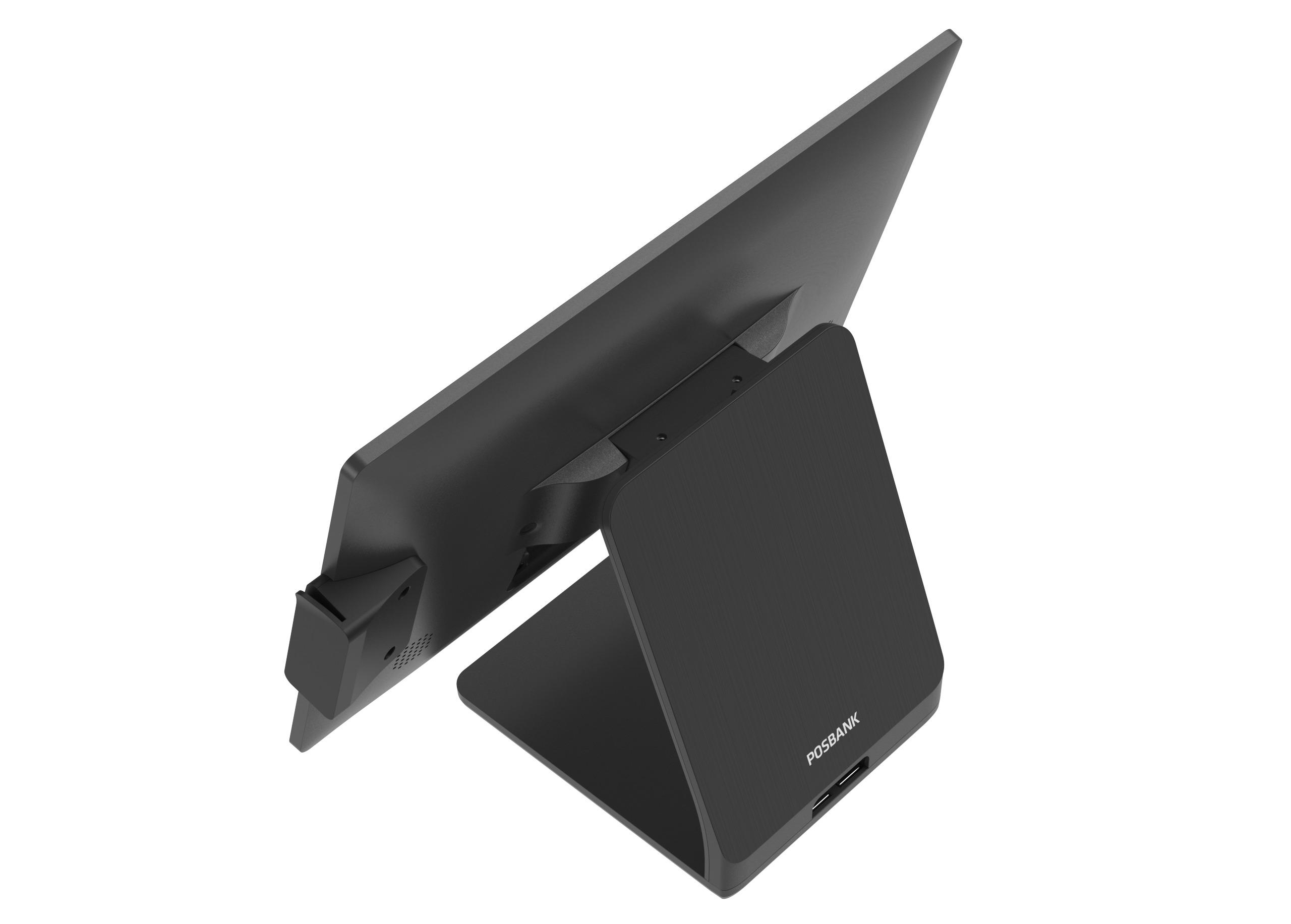

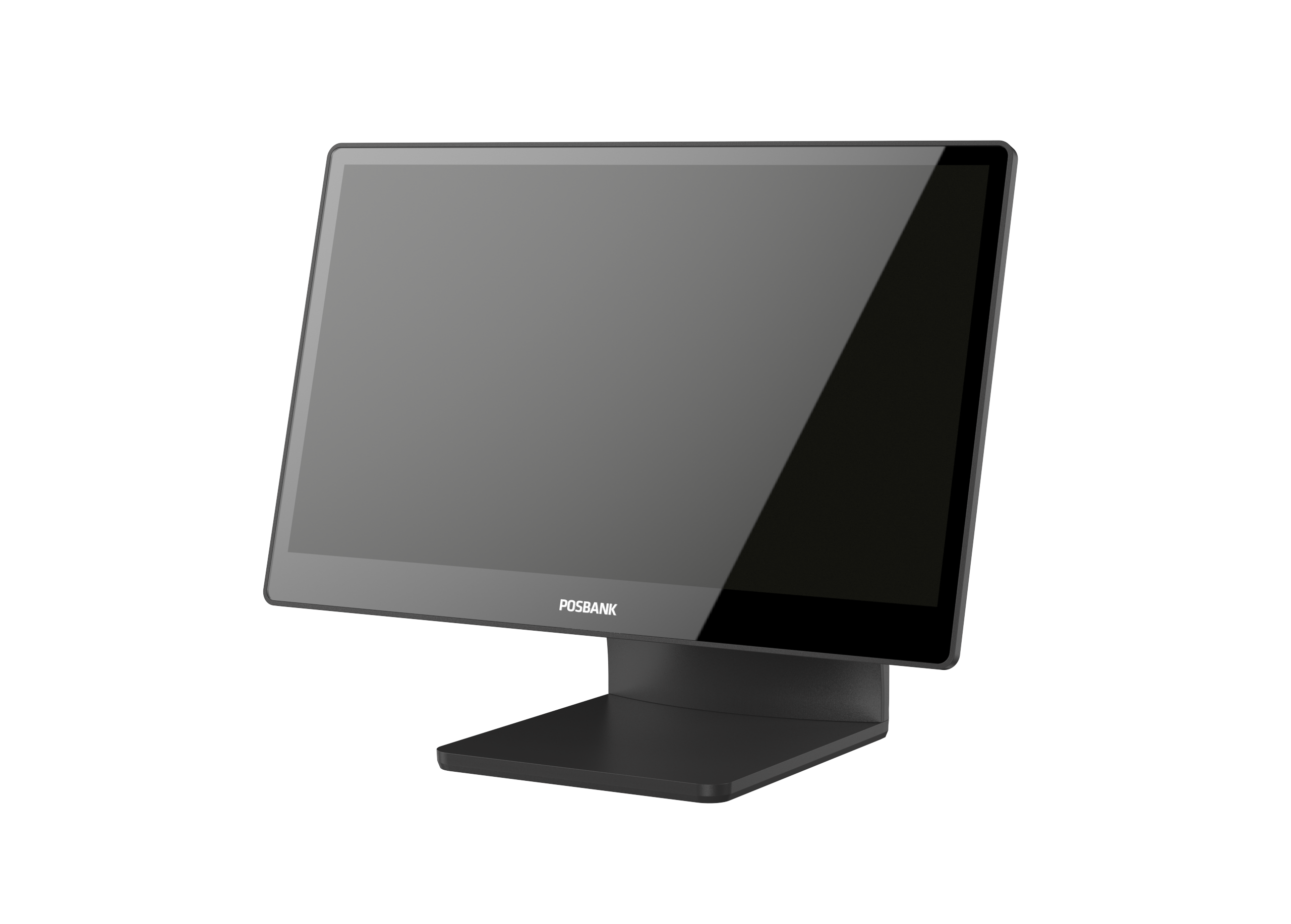

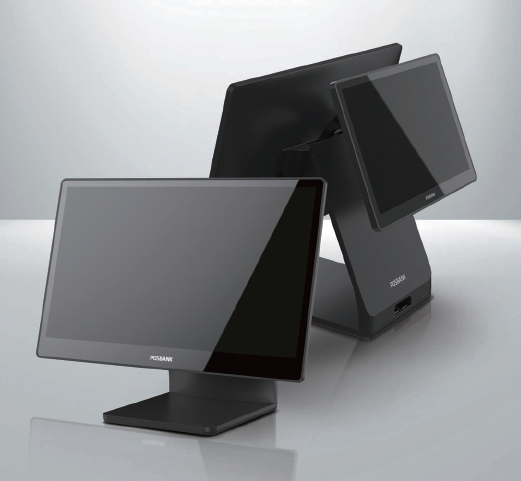

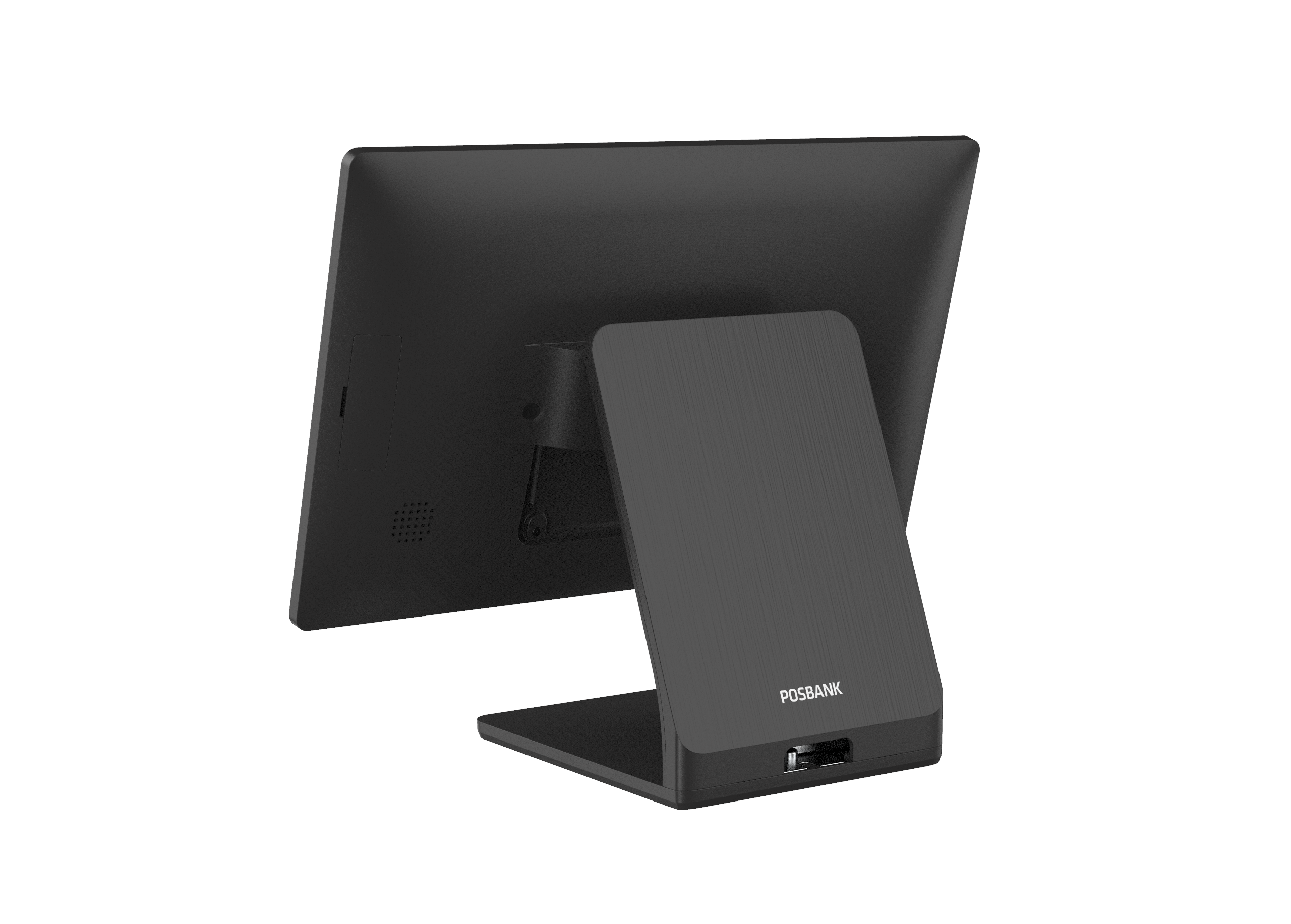

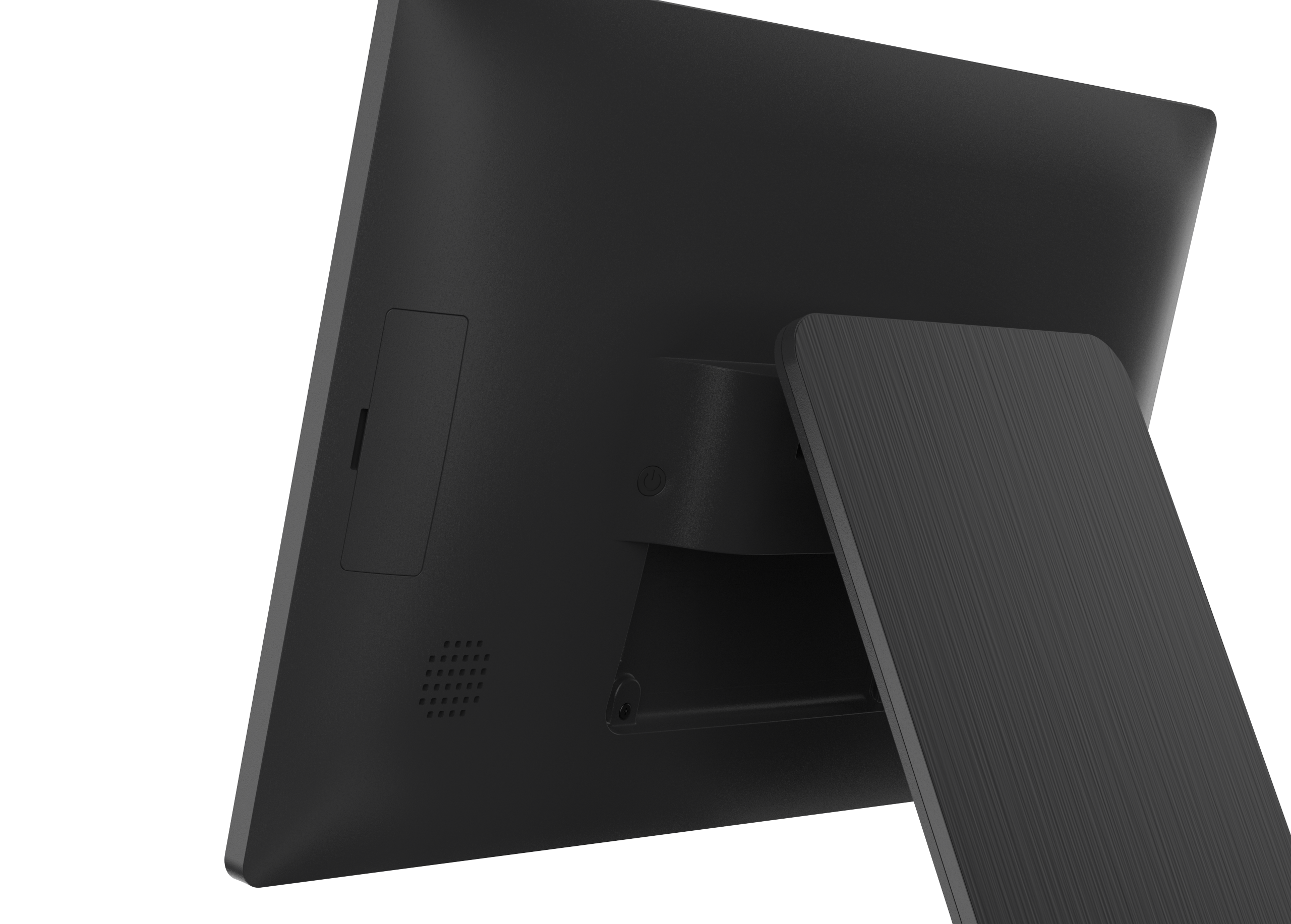

ACT 簡單來說就是憑證終端。 ACT 是一款基於 Android 的 POS，配備了最新的 Android 12.由於GMS認證正在進行中，本ACT與手機版本高度兼容解決方案，並且使用範圍也得到了擴大。 它具有 15.6 英寸寬屏幕和纖薄的弧形邊緣和緊湊的設計。
| System | |
| Processors | RK3399 Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
| Memory | 4GB Standard, DDR4, On-board |
| Storage | eMMC 64GB, On-board (Max. 256GB) |
| Operating Systems | Android 12 |
| Audio | HD Audio Codec |
| Display | |
| Type | 15.6” TFT LCD, LED Backlight (eDP Interface), Projected Capacitive Touch |
| Resolitin | 1920 x 1080 |
| Brightness | 1920 x 1080 |
| Interface | |
| Dos[;au | 1 x Displayport, MiniDP (Only compatible with ACT-only products) |
| USB | Rear 5 (4 x USB 2.0, 1 x USB-C) |
| Serial | External 2 COM1 RJ45 , Full Signal COM3 MiniDP, Only TX/RX, 12V Power Output, Reserved for CDP Internal 1 COM2 FPC Connector , Only TX/RX, Reserved for MSR |
| Casj Drawer Port | 1 x CashDrawer Port (RJ-12, 6 Pins(GPIO Communication)) |
| Wifi/ BT | BT(V4.0)+ WLAN (802.11 a/b/g/n, 2.4G) combo module, On-board (Factory Option) |
| LAN | 1 x Gigabit Ethernet , RJ-45 |
| Audtio & Speaker | 1 x Line-out / 1W (Mono) |
| Power DC-IN | 4 Pin DIN Jack |
| Power | |
| Power Supply | Adapter 12V, 5A(4 Pin Din Jack) |
| Option & Periherals | |

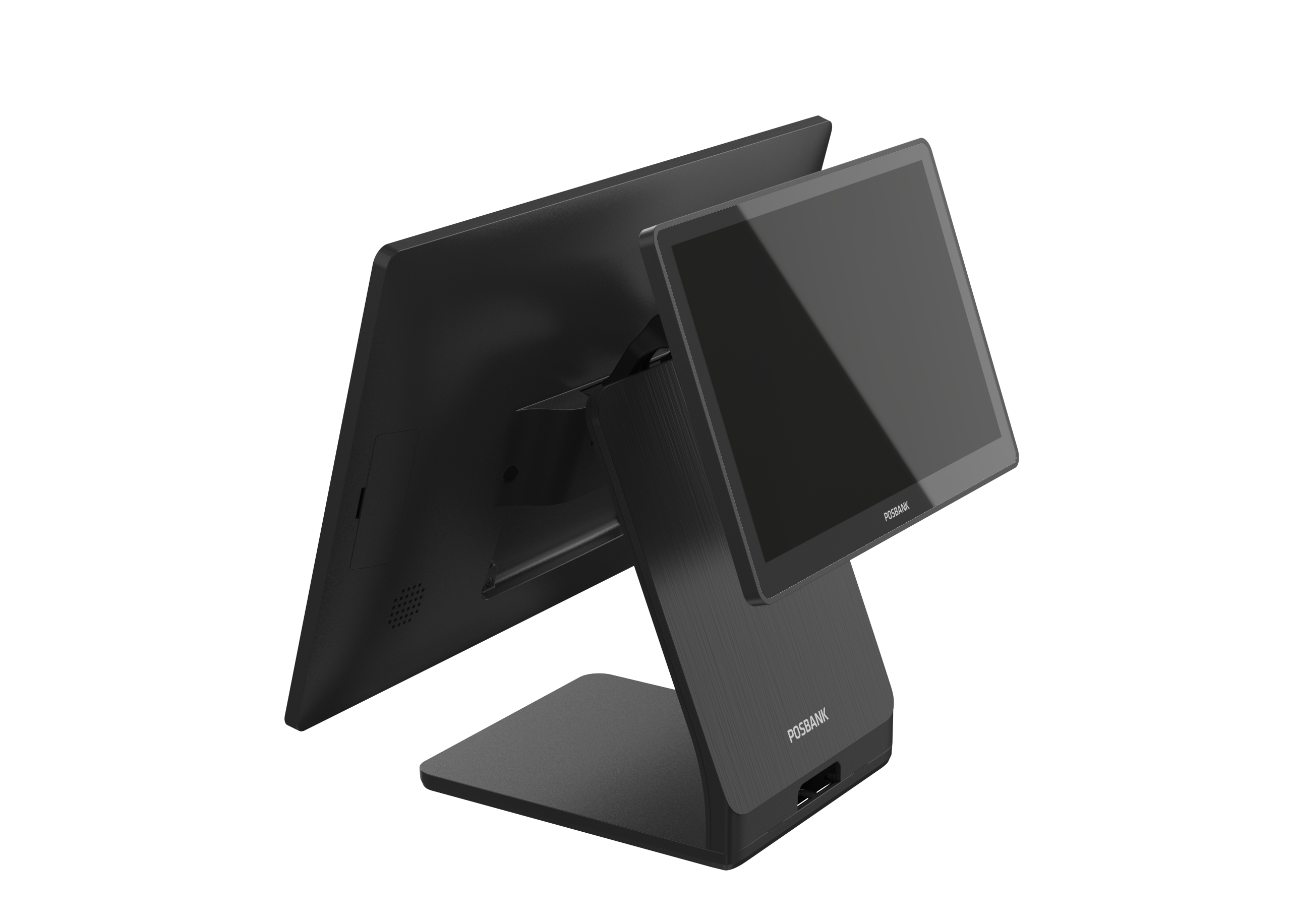

| 2nd Display | 10.1” (1280 x 800), 13.3” (1920 x 1080) LCD Display, Optional Touchscreen / VFD, 20 Columns x 2 Lines |
| External IO BOX | Option 1 : 2 x 12V Powered USB 2.0 / 1 x 24V Powered USB 2.0 / 2 x RJ45 (Full Signal) Option 2 : 1 x 12V Powered USB 2.0 / 1 x 24V Powered USB 2.0 / 2 x USB 2.0 / 2 x RJ45 (Full Signal) Option 3 : 1 x 24V Powered USB 2.0 / 4 x USB 2.0 / 2 x RJ45 (Full Signal) Option 4 : 6 x USB 2.0 / 2 x RJ45 (Full Signal) One option attachable at a time |
| Storage | - |

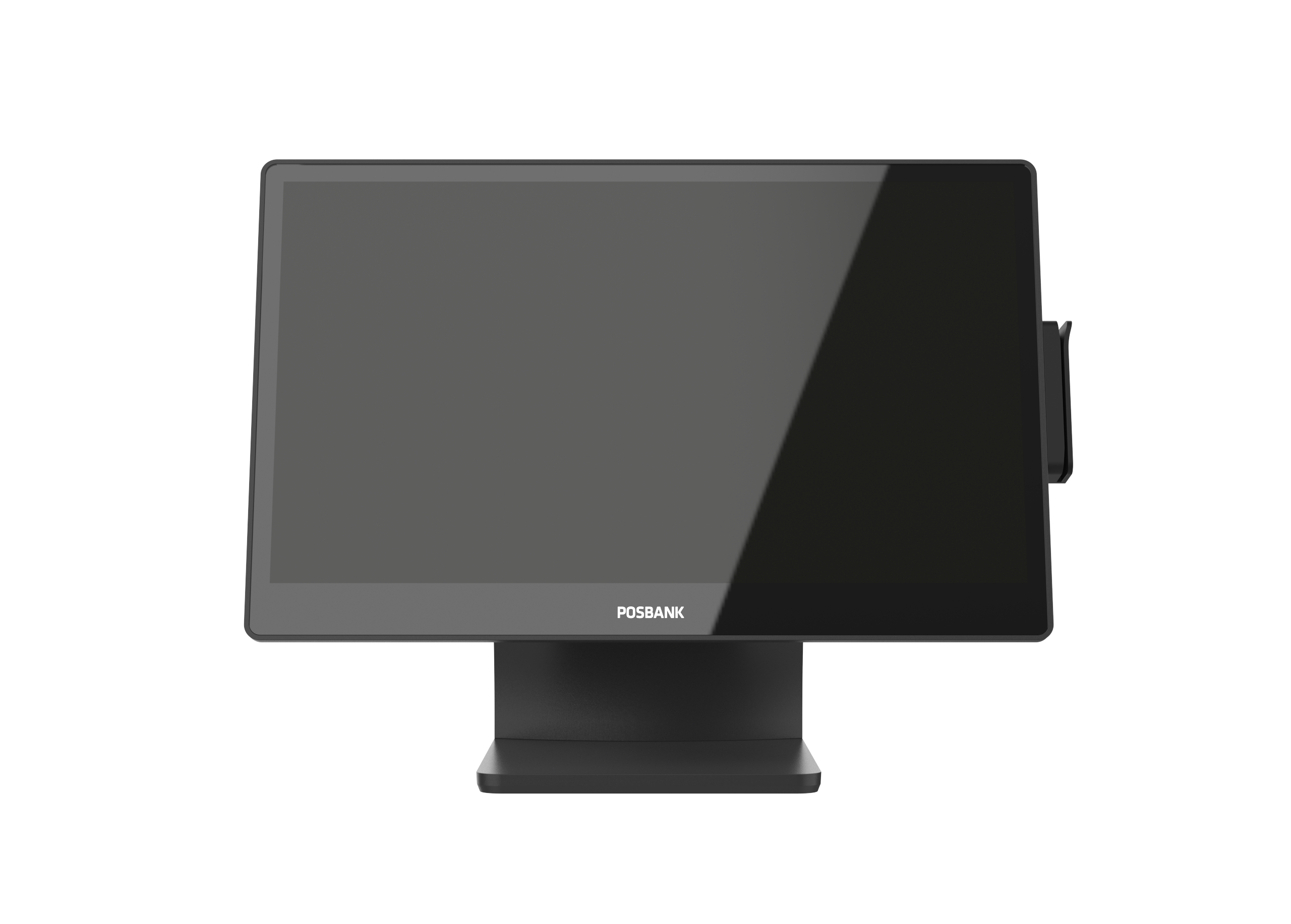

| MSR | Comply with ISO 7811, Support 1 & 2 & 3 Track |
| SCR | - |
| Dallas | Dallas i-button Reader / Fingerprint : Yes |
| Wall Mount Kit | TBD |
| Conversion Cable | RJ-45 to D-sub 9 |
| WiFi/ BI | - |
| TPM | - |
